How to Choose Aluminum Strip for Cable Shielding

In power cable production, the armor layer is the core structure that ensures cable lifespan and enhances mechanical protection and environmental adaptability. Aluminum tape, with its advantages of light weight, corrosion resistance, non-magnetic properties, and high cost-effectiveness, has become the mainstream material for cable armor and is widely used in the production of protective layers for power cables, communication cables, and control cables.

Common Aluminum Tape Alloys for Cable Armoring

1. 5052 Armored Aluminum Strip

5052 aluminum strip is the most commonly used basic 5-series aluminum-magnesium alloy armored tape. With a moderate magnesium content, it achieves good overall performance without heat treatment. Compared to pure aluminum tape, its tensile strength and compressive strength are significantly improved. It possesses basic resistance to salt spray and moisture corrosion, excellent toughness, and is less prone to cracking and wrinkling during high-speed wrapping and bending of cables.

It also has extremely high processing adaptability. This material offers outstanding cost-effectiveness and can meet the protection needs of cables in conventional outdoor, ordinary buried, and generally humid environments, making it the mainstream choice for civilian and municipal conventional cable armor.

2. 5154 Armored Aluminum Strip

The 5154 alloy has an increased magnesium content compared to 5052, resulting in comprehensive upgrades in mechanical properties and corrosion resistance. It is a specialized aluminum material for medium-high strength armoring. It boasts higher tensile strength and yield strength, stronger resistance to stretching, extrusion, and creep, and is less prone to deformation and loosening under long-term underground stress and temperature fluctuations.

Furthermore, its resistance to acids, alkalis, seawater, and salt spray corrosion is superior to 5052, making it suitable for most industrial outdoor applications, ordinary coastal areas, and mildly corrosive chemical environments. It is widely used for armoring medium- and high-voltage power cables and long-distance buried cables, and is an engineering-grade general-purpose model.

3. 5154A High-Purity Armored Aluminum Strip

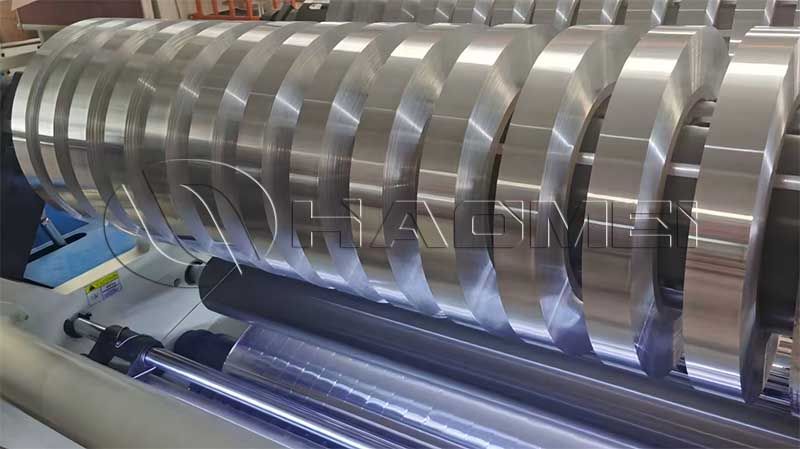

5154A cable shielding strip wholesale is a high-purity optimized modified version of the 5154 alloy. With strict control of impurity content and optimized alloy ratios and rolling processes, it is a high-end dedicated material for cable armoring. Compared to ordinary 5154 aluminum alloy, it boasts better material uniformity, stronger toughness, and zero cracking rate when wrapped.

Furthermore, its corrosion resistance, aging resistance, and fatigue resistance reach top-level performance, making it suitable for long-term use in extreme and harsh conditions such as heavy salt spray in coastal areas, chemical corrosion, deep-sea laying, and extreme temperature differences.

Its material stability is also excellent, showing no loosening or corrosion even after long-term operation. It is primarily used in high-requirement scenarios such as high-voltage transmission cables, submarine cables, and special cables for key projects.

Pure Aluminum Strip vs. Armored Aluminum Strip

1. Material Composition and Structural Differences

Pure aluminum strip uses 1060/1050 high-purity aluminum, with a single composition and loose structure. 5-series alloy aluminum strip incorporates trace elements such as magnesium and manganese, resulting in a denser and more stable crystal structure and stronger overall material performance.

2. Mechanical Performance Differences (Core Gap)

Pure aluminum strip is soft and has low hardness, poor resistance to external forces, and is prone to deformation and damage during construction and use, offering weak protection.

5-series (5052/5154/5154A) alloy aluminum strips offer significantly improved strength and hardness, with a performance gradient upgrade: 5052 is basically reinforced, 5154 is moderately reinforced, and 5154A offers high-performance stability.

Its excellent resistance to deformation, wear, and creep makes it suitable for complex working conditions such as underground installations, outdoor applications, and conduit installations, providing long-term stable protection for cables.

3. Differences in Corrosion and Aging Resistance

Pure aluminum strips have a thin oxide protective film and poor corrosion resistance, easily corroding and peeling in humid, salt spray, and acid/alkali environments, shortening cable life. 5-series alloy aluminum strips can form a dense composite protective film, with progressively improved corrosion resistance: 5052 is suitable for general outdoor moisture protection, 5154 is suitable for moderately corrosive environments, and 5154A can withstand severe salt spray and strong chemical corrosion, offering weather resistance and aging resistance, effectively extending cable life.

4. Differences in Processability and Adaptability

Pure aluminum strips are easy to process and shape, but their performance is limited, suitable only for ordinary indoor cable applications. 5-series alloy aluminum strips, while maintaining high strength, retain excellent machinability, exhibiting no cracking during bending and winding, making them suitable for most power, municipal, and industrial engineering applications.

5. Cost Difference

Pure aluminum strips are inexpensive, suitable only for simple working conditions and basic projects with low budgets. 5-series alloy aluminum strips have a slightly higher unit price, but offer comprehensive performance, significantly reducing subsequent maintenance and replacement costs, resulting in a higher overall cost-effectiveness and suitability for various mid-to-high-end projects.
